How Pressure Gauges Work and Why They Matter

Imagine a world where you can’t measure the pressure in your car tires, a factory boiler, or even a scuba tank. Chaos, right? That’s where the humble pressure gauge steps in—a small but mighty tool that keeps industries, vehicles, and everyday systems running smoothly. Whether you’re a homeowner checking your HVAC system or an engineer monitoring heavy machinery, understanding pressure gauges is essential. In this comprehensive guide, we’ll dive into what pressure gauges are, how they work, their types, applications, and tips for choosing the right one. Let’s get started!

Table of Contents

What Is a Pressure Gauge?

A pressure gauge is a device that measures the pressure of a gas or liquid in a system relative to a reference point, typically atmospheric pressure. These instruments provide critical data to ensure systems operate safely and efficiently. From monitoring tire pressure to ensuring industrial pipelines don’t burst, pressure gauges are indispensable across countless applications.

Pressure gauges come in various forms, from analog dials to digital displays, and they measure pressure in units like PSI (pounds per square inch), bar, or pascal. Their versatility and precision make them a cornerstone of both industrial and domestic settings.

Why Are Pressure Gauges Important?

Pressure gauges prevent accidents, optimize performance, and save costs. For example:

Safety: Overpressure in a boiler can lead to explosions. Gauges help monitor and maintain safe levels.
Efficiency: Proper pressure ensures systems like HVAC or hydraulic machinery run at peak performance.
Cost Savings: Early detection of pressure issues prevents costly repairs or downtime.

How Do Pressure Gauges Work?

At their core, pressure gauges rely on mechanical or electronic components to translate pressure into a readable format. Here’s a simplified breakdown:

Sensing Element: This is the heart of the gauge. Common types include:
- Bourdon Tube: A curved tube that straightens under pressure, moving a needle on a dial.
- Diaphragm: A flexible membrane that deforms under pressure.
- Bellows: Expandable chambers that react to pressure changes.
Movement Mechanism: In analog gauges, the sensing element’s movement is amplified through gears to rotate a needle across a calibrated dial.
Display: Analog gauges show pressure via a needle, while digital gauges use sensors and LCD screens for precise readings.

Digital pressure gauges often incorporate electronic sensors like piezoelectric or strain gauge transducers, offering higher accuracy and data logging capabilities.

Key Components of a Pressure Gauge

Dial/Scale: Displays the pressure reading.
Pointer: Indicates the current pressure on analog gauges.
Case: Protects internal components from dust, moisture, or impact.
Connection Port: Links the gauge to the system being measured.

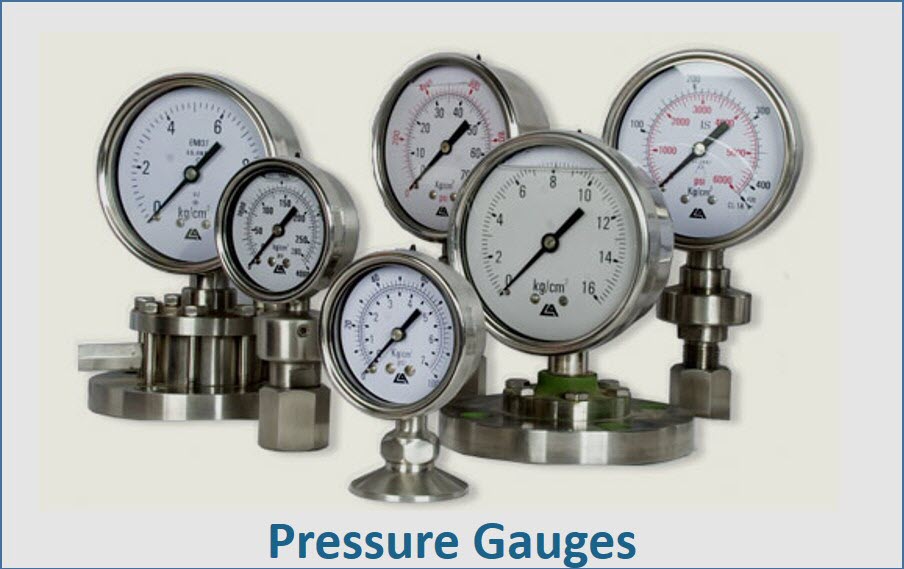

Types of Pressure Gauges

Pressure gauges are tailored to specific needs, environments, and pressure ranges. Here are the most common types:

Analog Pressure Gauges

Description: Feature a dial and needle for reading pressure.
Pros: Durable, no power source needed, cost-effective.
Cons: Less precise than digital, susceptible to vibration.
Use Cases: HVAC systems, tire pressure, general industrial applications.

Digital Pressure Gauges

Description: Use electronic sensors and LCD displays.
Pros: High accuracy, data logging, easy to read.
Cons: Require batteries, more expensive.
Use Cases: Laboratories, precision manufacturing, aerospace.

Differential Pressure Gauges

Description: Measure the difference in pressure between two points.
Pros: Ideal for monitoring filters or flow rates.
Cons: Limited to specific applications.
Use Cases: HVAC filter monitoring, oil and gas pipelines.

Vacuum Gauges

Description: Measure pressure below atmospheric levels.
Pros: Essential for vacuum systems.
Cons: Not suited for high-pressure environments.
Use Cases: Vacuum pumps, food packaging, scientific research.

Compound Gauges

Description: Measure both positive and negative pressures.
Pros: Versatile for systems with fluctuating pressures.
Cons: May lack precision in extreme ranges.
Use Cases: Refrigeration systems, medical equipment.

Image Source

Applications of Pressure Gauges

Pressure gauges are everywhere, quietly ensuring systems function correctly. Here are some key industries and applications:

Automotive: Checking tire pressure or monitoring engine oil pressure.
Industrial Manufacturing: Ensuring hydraulic and pneumatic systems operate safely.
Oil and Gas: Monitoring pipeline pressure to prevent leaks or bursts.
HVAC: Maintaining optimal pressure in heating and cooling systems.
Medical: Regulating pressure in oxygen tanks or anesthesia machines.
Aerospace: Monitoring cabin pressure or fuel systems in aircraft.

Each application demands specific gauge features, like corrosion resistance for chemical plants or high precision for medical devices.

How to Choose the Right Pressure Gauge

Selecting the perfect pressure gauge depends on your needs. Here are key factors to consider:

Pressure Range: Choose a gauge with a range 1.5–2 times the system’s normal operating pressure to avoid damage.
Accuracy: Industrial applications may need ±0.5% accuracy, while general use can tolerate ±2%.
Environment: Consider temperature, humidity, and exposure to chemicals. Stainless steel gauges resist corrosion.
Connection Type: Ensure the gauge’s port (e.g., NPT, BSP) matches your system.
Display Type: Analog for rugged environments, digital for precision.
Mounting: Options include bottom, back, or panel mounting.
Budget: Balance cost with durability and accuracy.

Pro Tip

Always consult the manufacturer’s specifications and consider calibration needs. Regular calibration ensures long-term accuracy.

Common Pressure Gauge Problems and Solutions

Even the best gauges can face issues. Here’s how to troubleshoot:

Needle Stuck or Erratic: Caused by vibration or debris. Solution: Install a snubber or clean the gauge.
Inaccurate Readings: May result from overpressure or wear. Solution: Recalibrate or replace the gauge.
Leaking: Damaged seals or connections. Solution: Tighten connections or replace seals.
Fogged Dial: Moisture ingress. Solution: Use a liquid-filled gauge for damp environments.

Maintenance Tips for Pressure Gauges

To extend the life of your pressure gauge:

Regular Calibration: Check accuracy annually or per manufacturer guidelines.
Avoid Overpressure: Install pressure relief valves to protect the gauge.
Clean Properly: Use appropriate cleaners to avoid damaging components.
Store Correctly: Keep gauges in a dry, stable environment when not in use.

Future Trends in Pressure Gauge Technology

Pressure gauges are evolving with technology. Here’s what’s on the horizon:

Smart Gauges: IoT-enabled gauges that send real-time data to smartphones or cloud platforms.
Wireless Connectivity: Bluetooth or Wi-Fi for remote monitoring.
Eco-Friendly Designs: Energy-efficient digital gauges with recyclable materials.
AI Integration: Predictive maintenance using AI to detect anomalies.

These advancements promise greater accuracy, convenience, and sustainability.

Conclusion: Why Pressure Gauges Matter to You

Pressure gauges may seem like small components, but their impact is massive. From keeping your car’s tires safe to ensuring industrial systems run without a hitch, these devices are unsung heroes. By understanding how they work, their types, and how to choose the right one, you can make informed decisions that boost safety and efficiency.

Ready to find the perfect pressure gauge for your needs? Explore our recommended pressure gauge suppliers or share your questions in the comments below! Let’s keep the conversation flowing—tell us how you use pressure gauges in your daily life or work.
