Key Takeaways
- The VEVOR 1550W mag drill press generates 2922lbf of magnetic holding force with a high-purity iron core for stable, secure drilling.
- Its 0-550 RPM variable speed range, spread across 10 settings, is tuned for slower, high-torque cutting through thick structural steel.
- It bores a full 2 inches in diameter and 2 inches deep, matching the largest annular cutters typically used in I-beam fabrication.
- A titanium magnesium alloy guide rail resists corrosion, which matters through Georgia’s humid, subtropical summers.
- It works for both jobsite steel fabrication and serious home workshop projects, making it a flexible pick for pros and advanced DIYers.
- Overload protection and a rapid cooling system help protect the motor during extended, high-torque drilling sessions.
Boring large-diameter holes into structural steel takes more than a strong motor. It takes a machine that can hold its position under heavy torque without slipping, especially when the cutter is pushing through 2 inches of material. That combination of holding power and control is exactly what buyers are checking for before choosing a mag drill for serious fabrication or workshop use.
Georgia’s metal fabrication and construction trades stretch from Atlanta’s commercial steel contractors to smaller workshop operations across the state, all working through hot, humid summers that are hard on unprotected tools. The VEVOR 1550W mag drill press was designed with that kind of demanding, large-diameter drilling in mind, and its slower, torque-focused speed range sets it apart from the faster, lighter-duty mag drills in VEVOR’s lineup.
Product at a Glance

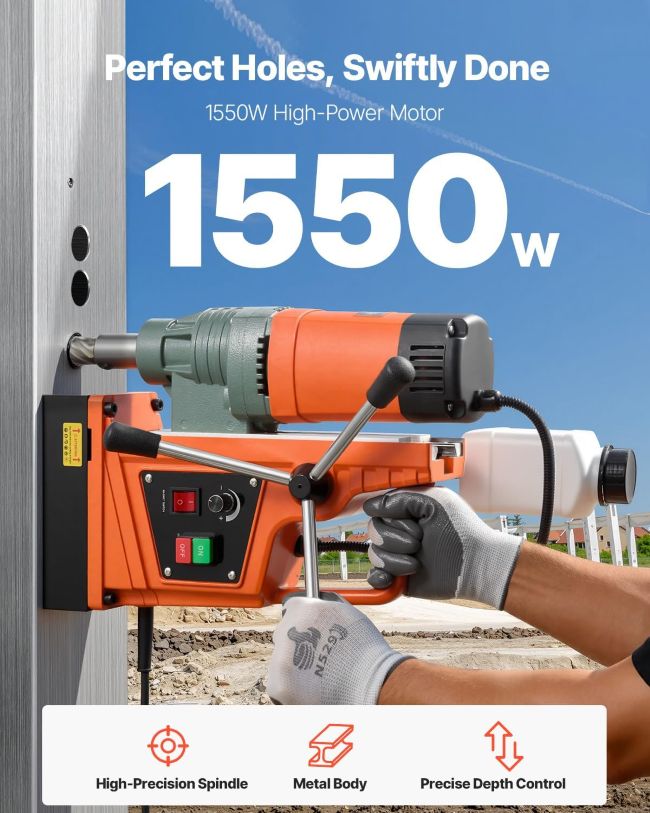

VEVOR 1550W mag drill press
| Attribute | Details |
|---|---|
| Motor Power | 1550W copper motor |
| Magnetic Force | 2922lbf / 13,000N |
| Max Coring Diameter | 2 in / 50mm |
| Max Coring Depth | 2 in / 50mm |
| Speed | 0-550 RPM, 10-speed settings |
| Guide Rail Material | Titanium magnesium alloy |
| Best For | I-beam steel fabrication, workshop, and DIY structural work |
Detailed Review
Why This Product Stands Out
Where VEVOR’s 1450W model tops out around 750 RPM, this 1550W version deliberately runs slower, topping out at 550 RPM. That is not a downgrade. Slower top-end speed paired with more motor power gives large annular cutters the torque they need to bore a full 2-inch hole without stalling or overheating.
For Georgia fabricators cutting thick structural sections, that torque-first design matters more than raw speed. Bigger cutters generate more resistance, and a motor tuned for torque handles that resistance more predictably than one built purely for speed.

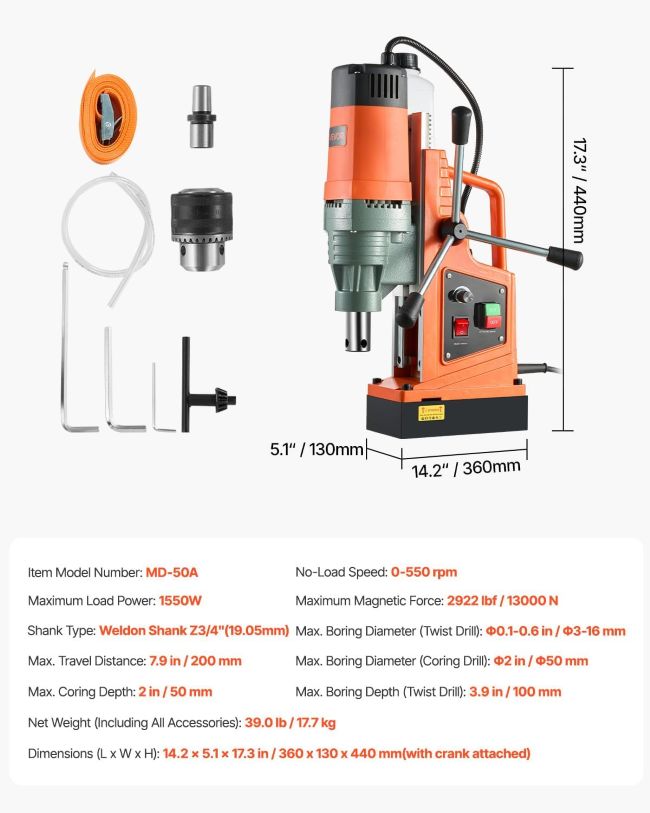

Key Specifications
| Spec | Value |
|---|---|
| Voltage | 110–120V |
| Max Boring Diameter (Coring Drill) | 2 in / 50mm |
| Max Boring Diameter (Twist Drill) | 0.63 in / 16mm |
| Max Boring Depth (Twist Drill) | 3.9 in / 100mm |
| Max Travel Distance | 8.3 in / 210mm |
| Speed Range | 0-550 RPM, 10-speed |
| Overload Protection | Yes |
| Minimum Steel Thickness | 0.39 in / 10mm |
Design & Build Quality
The base uses a thickened electromagnetic design with a high-purity iron core, which is what allows it to reach its rated 2922lbf holding force. That holding force is distributed across both anchor points of the base, keeping the unit steady even as cutting resistance increases with larger cutter diameters.
A built-in depth scale on the frame lets operators measure drilling distance in millimeters without stopping to check manually, which speeds up repeat hole patterns on longer fabrication runs.
Materials & Construction
The titanium magnesium alloy guide rail resists corrosion and wear better than the plain steel rails found on cheaper mag drills. That matters in Georgia’s climate, where summer humidity and coastal moisture near Savannah can accelerate rust on unprotected metal components.
VEVOR specifies that this unit should be used on steel plates at least 10mm thick, and notes it is not intended for stainless steel or cast iron. Following that guidance is important, since thinner or non-ferrous surfaces will not generate enough magnetic holding force for safe operation.
Performance
The lower 0-550 RPM top speed is a deliberate trade-off for torque. When boring a full 2-inch hole, slower rotational speed reduces heat buildup and cutter wear, which extends the life of larger, more expensive annular cutters. The 10-speed adjustment still gives operators flexibility to slow down further for tougher material or speed up slightly for thinner sections.
The included coolant bottle with a quick push-fit tube connection feeds coolant directly to the cutting edge, which is especially important on large-diameter cores where heat generation is higher than on smaller holes.
Comfort / Usability
Extended crank handles provide the leverage needed to feed a 2-inch cutter through thick steel without excessive physical strain. The depth scale simplifies matching hole depth across multiple pieces, which is useful for both production fabrication work and one-off workshop projects.
This is a heavier unit than VEVOR’s 1300W and 1450W models, reflecting its larger motor and reinforced base. Operators should expect to set it in place methodically rather than repositioning it quickly and repeatedly throughout a shift.
Features Explained
Torque-focused 0-550 RPM range matters because larger cutters need lower speeds to avoid overheating, and this unit is built around that reality rather than prioritizing top-end RPM.
Overload protection shuts the motor down before damage occurs during a jam, which is a meaningful safeguard given the higher torque loads this machine is designed to handle.
Quick push-fit coolant system simplifies setup and keeps the cutting edge lubricated, directly extending the usable life of annular cutters during large-diameter coring.
Real World Usage
A common Georgia application is drilling large mounting holes into structural steel columns for commercial building installations. Workshop users also rely on this size of mag drill for custom metal fabrication projects, like trailer builds or heavy equipment frames, where 2-inch holes are a standard requirement.
Benefits
- Full 2-inch coring capacity for large structural holes
- Torque-tuned speed range built for bigger annular cutters
- Strong, evenly distributed 2922lbf magnetic base
- Corrosion-resistant guide rail suited to humid climates
- Suitable for both jobsite fabrication and workshop DIY projects
Limitations
- Heavier than VEVOR’s smaller mag drill models
- Lower top-end RPM limits its efficiency on smaller-diameter holes
- Not rated for stainless steel, cast iron, or steel plates under 10mm thick
Who Should Buy It?
This model fits steel fabricators, welders, and serious DIYers who regularly need 2-inch structural holes and value torque and stability over speed. It is a strong match for Georgia workshops handling custom fabrication, trailer builds, or structural steel installation.
Who Should Avoid It?
Users who mostly drill smaller-diameter holes will get more efficient results from a faster, lighter mag drill, since this unit’s lower RPM range is optimized for larger cutters rather than quick small-hole work.
Comparison with Similar Products
Compared to VEVOR’s 1450W mag drill press, which runs faster at 0-750 RPM, this 1550W model trades top-end speed for more consistent torque on full 2-inch cores. Compared to premium industrial mag drills built for the same coring capacity, it delivers similar performance at a significantly lower price, making it a practical choice for workshops that need large-hole capability without an industrial budget.
Key Features Table
| Feature | Why It Matters |
|---|---|
| 2922lbf Magnetic Base | Anchors the drill during high-torque, large-diameter cuts |
| 1550W Copper Motor | Delivers the torque needed for full 2-inch coring |
| 0-550 RPM, 10-Speed Control | Optimized for larger cutters rather than raw speed |
| Titanium Magnesium Guide Rail | Resists corrosion in humid climates |
| Overload Protection | Protects the motor under heavy cutting loads |
| Quick Push-Fit Coolant System | Extends cutter life during large-diameter drilling |
Pros & Cons Table
| Pros | Cons |
|---|---|
| Full 2-inch coring capacity | Heavier than smaller VEVOR models |
| Torque-tuned for large cutters | Lower top-end RPM than 750 RPM models |
| Strong, stable magnetic base | Not suited for stainless steel or cast iron |
| Corrosion-resistant guide rail | Requires 10mm+ steel thickness for full grip |
Cleaning Tips
Wipe coolant residue and metal shavings off the base and guide rail after each session to prevent buildup from interfering with the crank mechanism. Empty and rinse the coolant bottle regularly to prevent clogging in the push-fit tube.
Maintenance Tips
Check the magnetic base surface for rust or paint buildup before each job, since either can reduce holding force. Inspect the guide rail periodically for smooth sliding action, and address any resistance before it affects drilling accuracy.
Troubleshooting Tips
If the magnetic base feels weak, confirm the steel surface is clean, flat, and at least 10mm thick. If the motor struggles under load, reduce feed pressure and check that the coolant system is engaged to manage heat during larger cores.
What Real Buyers Appreciate
Feedback across VEVOR’s mag drill lineup consistently highlights strong magnetic holding force and reliable performance for both jobsite and workshop use. Some buyers have described repurposing this size of mag drill creatively, such as mounting it upside down to remove a broken bolt from a vehicle subframe, which speaks to its stability at unconventional angles. Others note that build quality and packaging generally arrive in solid condition, though experiences can vary slightly by unit.
Frequently Asked Questions
Is the VEVOR 1550W mag drill press strong enough for structural steel work?
Yes, its 2922lbf magnetic base and full 2-inch coring capacity are built for structural steel fabrication and installation.
Why does this model run at a lower RPM than VEVOR’s 1450W version?
The 0-550 RPM range is tuned for torque, which suits the larger annular cutters needed to bore a full 2-inch hole.
Can this mag drill be used on stainless steel?
No, VEVOR specifies it is not intended for stainless steel or cast iron surfaces.
What is the minimum steel thickness for proper magnetic holding?
The steel surface should be at least 0.39 inches, or 10mm, thick to achieve full magnetic holding force.
Does the VEVOR 1550W mag drill press include a coolant system?
Yes, it includes a coolant bottle with a quick push-fit tube connection for cutter cooling and lubrication.
Is this mag drill suitable for home workshop use?
Yes, it works well for both professional jobsite fabrication and serious home workshop or DIY structural projects.
How does the weight compare to smaller VEVOR mag drills?
It is noticeably heavier than VEVOR’s 1300W and 1450W models due to its larger motor and reinforced base.
Is the VEVOR 1550W mag drill press a good fit for Georgia’s climate?
The corrosion-resistant guide rail helps it hold up to Georgia’s humid summers, though it should still be stored indoors when not in use.
Final Verdict
The VEVOR 1550W mag drill press stands out for buyers who need full 2-inch coring capacity and consistent torque rather than raw speed. If you’re learning how to choose the best power tools for your needs, its strong magnetic base, corrosion-resistant construction, and torque-focused design make it a solid choice for Georgia fabricators and serious DIYers tackling large structural holes at a price well below industrial equipment.
Call To Action
If your projects call for large-diameter structural holes and a mag drill built for torque over speed, the VEVOR 1550W mag drill press is worth a close look. Compare current pricing and availability to see if its 2-inch coring capacity fits your next fabrication or workshop project.
