Key Takeaways
- The VEVOR magnetic drill press delivers 2922lbf of magnetic holding force, enough to anchor firmly to steel surfaces over 10mm thick.
- Its 1300W copper motor spins up to 810 RPM, giving it enough torque for coring bits up to 1.57 inches wide.
- A titanium magnesium alloy guide rail resists corrosion, which matters for Michigan’s humid summers and salted winter roads.
- The unit ships with 11 coring bits, a coolant system, and overload protection built into the base.
- At roughly 28 pounds, it stays portable enough for job-site work without sacrificing drilling stability.
- It suits fabricators, HVAC techs, and serious DIYers more than occasional hobbyists who only need a handful of holes a year.
Drilling clean, accurate holes into structural steel is not something a handheld drill can do reliably. The bit wanders, the metal overheats, and an off-center hole can compromise an entire weld or bolt pattern. That is the exact problem a magnetic drill press was built to solve, and it explains why so many Michigan fabricators, HVAC installers, and steel workers are searching for an affordable option that still performs like a shop-grade tool.
Michigan’s manufacturing and construction trades run on precision. Whether you are working in a Detroit metro fabrication shop, a Grand Rapids HVAC crew, or a rural pole-barn workshop near Traverse City, the tool you choose has to survive humidity, temperature swings, and daily abuse. The VEVOR Mag Drill Press has become a popular pick for exactly that reason: it brings industrial-style magnetic drilling within reach of small shops and independent contractors without the four-figure price tag of legacy brands.
Product at a Glance

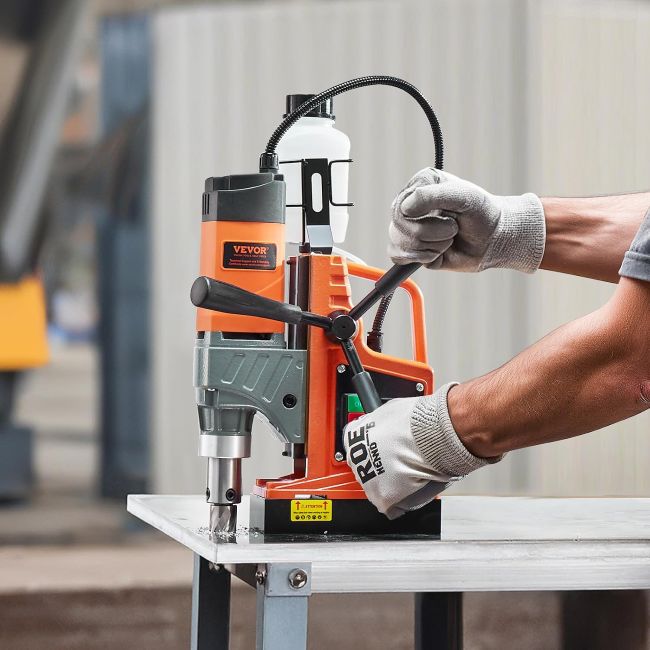

VEVOR magnetic drill press
| Attribute | Details |
|---|---|
| Motor Power | 1300W copper motor |
| Magnetic Force | 2922lbf / 13,000N |
| Max Boring Diameter (Coring) | 1.57 in / 40mm |
| Max Boring Diameter (Twist Drill) | 0.63 in / 16mm |
| Speed | Up to 810 RPM |
| Guide Rail Material | Titanium magnesium alloy |
| Included Bits | 11-piece coring bit set |
| Weight | Approx. 28.2 lbs / 12.8 kg |
| Best For | Steel fabrication, structural steel, HVAC ductwork frames |
Detailed Review
Why This Product Stands Out
Most affordable mag drills cut corners on either magnetic strength or motor durability. VEVOR pairs a genuine 1300W copper-wound motor with a thick electromagnetic base rated at 2922lbf. That combination matters because a weak magnet is the number one cause of mag drill accidents. If the base can’t hold steady under torque, the whole unit can shift or tip mid-cut.
For Michigan users working on outdoor steel frames, bridge components, or trailer chassis, that holding power translates directly into safer, more repeatable results. You are not fighting the tool to keep it in place while also trying to guide a clean hole.
Key Specifications
| Spec | Value |
|---|---|
| Voltage | 110–120V, 60Hz |
| Max Coring Depth | 2 in / 50mm |
| Max Twist Drill Depth | 3.9 in / 100mm |
| Max Travel Distance | 8.3 in / 210mm |
| Product Dimensions | 10.6 x 4.7 x 14.2 in |
| Overload Protection | Yes |
| Coolant System | Integrated tank and tube |
Design & Build Quality
The frame uses a compact, boxy design that keeps the center of gravity low. That lowers the risk of tipping when the drill is mounted on a vertical or overhead surface, which is common in duct hanging and structural steel work. Three hand cranks distribute leverage evenly, so operators are not relying on wrist strength alone to feed the bit.
The scale printed on the frame lets you track drilling depth in millimeters without stopping to measure manually. It is a small addition, but it saves real time on repetitive hole patterns, which is exactly the kind of work Michigan fabrication shops handle daily.
Materials & Construction
The guide rail is made from titanium magnesium alloy rather than plain steel. This choice matters more than it might seem. Standard steel rails can develop surface rust when exposed to shop humidity, coolant overspray, or Michigan’s damp winters. A titanium magnesium alloy rail resists that corrosion and keeps the sliding action smooth over years of use.
The magnetic base itself uses pure iron construction, which is the standard approach for maximizing magnetic flux and holding strength. Pure iron accepts and releases a magnetic charge more efficiently than mixed alloys, which is part of why the base reaches its rated 2922lbf figure.
Performance
At 810 RPM, this drill press sits in a useful middle ground. It is fast enough to move through mild steel efficiently but controlled enough to avoid burning out annular cutters on thicker material. The coolant system feeds directly to the cutting edge, which extends bit life and reduces the smoking and discoloration that comes from dry-cutting steel.
Where this model shows real value is in repeat-hole work, like drilling matching bolt patterns across multiple steel plates. The magnetic hold stays consistent from the first hole to the fiftieth, which is not something every budget mag drill can claim.
Comfort / Usability
The ergonomic handle and extended crank arms reduce fatigue during long sessions. Because the unit weighs around 28 pounds, one person can carry it between job locations without a hoist or second set of hands, which matters for mobile fabrication or on-site installation work across Michigan job sites.
Beginners will appreciate the depth scale and the relatively intuitive crank feed. Experienced machinists will still find enough torque and control to handle demanding annular cutter work.
Features Explained
Overload protection shuts the motor down before it burns out under excessive load. This protects your investment during accidental jams, which happen more often than most operators expect when cutting inconsistent scrap steel.
Integrated coolant delivery keeps the cutting edge lubricated and cool, directly extending bit life and improving hole finish. Dry-cutting steel dulls bits fast and increases the risk of bit breakage.

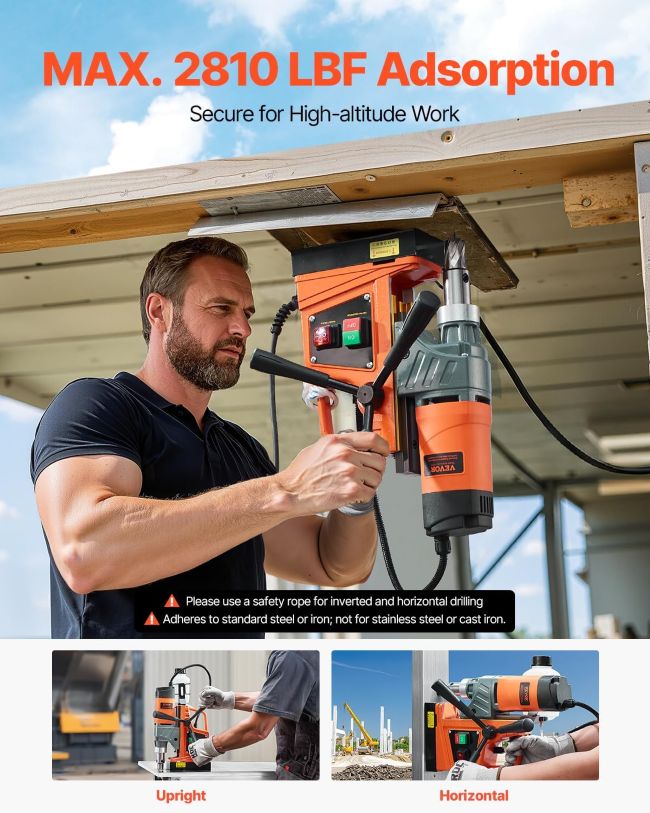

Multi-position magnetic base allows the unit to be mounted upright, inverted, or horizontally. That flexibility is essential for structural and pipe work where the drilling surface is not always flat and facing upward.
Real World Usage
A common use case among Michigan metal shops is drilling bolt-hole patterns into I-beams for equipment mounting. Another frequent application is HVAC contractors anchoring ductwork brackets to steel structural members in commercial buildings. In both cases, the magnetic base needs to hold securely on a vertical or overhead surface, which is precisely where this tool’s rated holding force earns its keep.
Benefits
- Strong enough magnetic base for vertical and overhead drilling
- Coolant system extends bit life on thick steel
- Corrosion-resistant guide rail suited to humid or coastal-adjacent climates
- Lightweight enough for one-person job-site transport
- Depth scale simplifies repeat hole patterns
Limitations
- Not designed for extremely thin metal below the recommended 10mm thickness threshold, since the magnetic base needs enough material to generate a full magnetic circuit
- Coolant tank requires manual refilling and occasional cleaning
- Corded design means you need access to a power outlet or generator on remote sites
Who Should Buy It?
This tool fits steel fabricators, HVAC and mechanical contractors, welders, and serious DIYers who regularly drill into structural steel. If you are outfitting a home workshop for a specific ongoing project, like building a trailer frame or a steel-framed shed, it is also a reasonable investment.
Who Should Avoid It?
Occasional users who need one or two holes a year are better served renting a mag drill or using a handheld option with a drill guide. Woodworkers and anyone working exclusively with thin sheet metal under the recommended thickness will not see the benefit of the magnetic base.
Comparison with Similar Products
Compared to entry-level handheld magnetic drill adapters, this dedicated mag drill press offers far more stability and a purpose-built coolant system. Compared to premium industrial brands, it trades some long-term durability testing history for a significantly lower price point, which makes it a practical middle-tier choice for shops that need reliable performance without an industrial-grade budget.
Key Features Table
| Feature | Why It Matters |
|---|---|
| 2922lbf Magnetic Base | Keeps the drill stable on vertical and overhead steel |
| 1300W Copper Motor | Maintains torque under load without stalling |
| Titanium Magnesium Guide Rail | Resists corrosion in humid shop conditions |
| Integrated Coolant System | Extends bit life and improves hole finish |
| Overload Protection | Prevents motor burnout during jams |
| 11pc Bit Set | Covers a wide range of hole diameters out of the box |
Pros & Cons Table
| Pros | Cons |
|---|---|
| Strong magnetic holding force | Requires 10mm+ metal thickness to work properly |
| Included coolant system and bit set | Coolant tank needs periodic maintenance |
| Corrosion-resistant rail | Corded, so power access is required |
| Portable at roughly 28 lbs | Not ideal for occasional or light-duty users |
Maintenance Tips
Wipe down the guide rail after each use to prevent metal shavings from building up in the sliding mechanism. Check the coolant tank level before starting a job, and flush the tube periodically to prevent clogging from dried coolant residue.
Troubleshooting Tips
If the magnetic base seems weak, confirm the drilling surface is clean, flat, and at least 10mm thick, since paint, rust, or an uneven surface can all reduce magnetic contact. If the motor stalls under load, reduce feed pressure and confirm the coolant system is engaged to prevent overheating.
What Real Buyers Appreciate
Buyer feedback across VEVOR’s magnetic drill press lineup tends to highlight the same themes: strong magnetic holding power, solid value for the price, and dependable performance for shop and job-site tasks. Some buyers note that build quality and coolant system fit can vary slightly between units, which is worth keeping in mind when inspecting your unit on arrival.
Frequently Asked Questions
Is the VEVOR magnetic drill press good for beginners?
Yes, the depth scale and guided crank feed make it approachable, though users should still follow standard shop safety practices when operating any mag drill.
What thickness of steel does a VEVOR magnetic drill press need to grip properly?
The magnetic base is designed to hold securely on steel or iron surfaces at least 10mm thick.
Can this mag drill be used vertically or overhead?
Yes, the base is rated for upright, inverted, and horizontal mounting, which supports structural and overhead installation work.
Does the VEVOR magnetic drill press include drill bits?
It comes with an 11-piece coring bit set, along with a coolant tank, cranks, and the hardware needed to get started.
How loud is the motor during operation?
It runs comparably to other corded shop power tools; hearing protection is still recommended for extended sessions.
Is coolant required for every job?
Coolant is recommended for most steel drilling to extend bit life, though very short or light-duty holes may not require it.
How much does the VEVOR magnetic drill press weigh?
It weighs approximately 28 pounds, which keeps it portable for one-person transport between job sites.
Is this tool suitable for Michigan’s outdoor job-site conditions?
The corrosion-resistant guide rail and sealed motor housing make it a reasonable fit for the humidity and temperature swings common across Michigan work sites, though it should still be stored indoors when not in use.
Final Verdict
The VEVOR magnetic drill press earns its growing popularity among Michigan fabricators and DIYers by combining real magnetic holding power with a durable, corrosion-resistant build at an accessible price. If you’re learning how to choose the best power tools for your needs, its balance of performance, durability, and affordability makes it worth considering for a range of projects. It is not a replacement for premium industrial equipment used in high-volume production, but for independent contractors, small fabrication shops, and serious home projects, it delivers dependable performance well above its price point.
Call To Action
If you regularly drill into structural steel and want a stable, portable solution built for real job-site conditions, the VEVOR magnetic drill press is worth adding to your toolkit. Check current pricing and availability before your next project to see if it fits your shop’s needs.
